DRAINFIX TWIN infiltration rainwater | low traffic
IDEAL FOR: infiltration with high volumes of rainwater in low-traffic areas in private and public areas.
YOUR BENEFITS WITH DRAINFIX TWIN
HIGH STORAGE CAPACITY
- with combinable elements
--> double volume - large retention volume offers
considerable room for sudden precipitation
= Varnost trajanja
SPACE-SAVING DESIGN
- reduced time and effort on site and space requirements by 2/3 - compared to conventional gravel trenches
- area remains completely usable for other purposes:
--> depending on the installation situation, the load capacity ranges from pedestrian accessible to SLW 30 (car) - optimised transport:
--> 32 elements stacked on a Euro pallet = storage volume of approx. 8.1 m
= Prihranek stroškov
FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION
= Varnost trajanja | Varnost kvalitete
FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION
- DRAINFIX TWIN elements
- end cap:
with variable connection options via pipe outlet - DRAINFIX multifunction shaft:
for inspection or filtering
= Varnost trajanja | Varnost kvalitete
UNIQUE COMBINATION POSSIBILITY
- six different combinations with the two basic elements DRAINFIX TWIN 1 and DRAINFIX TWIN 0
- the elements are optimally combined according to soil conditions and requirements

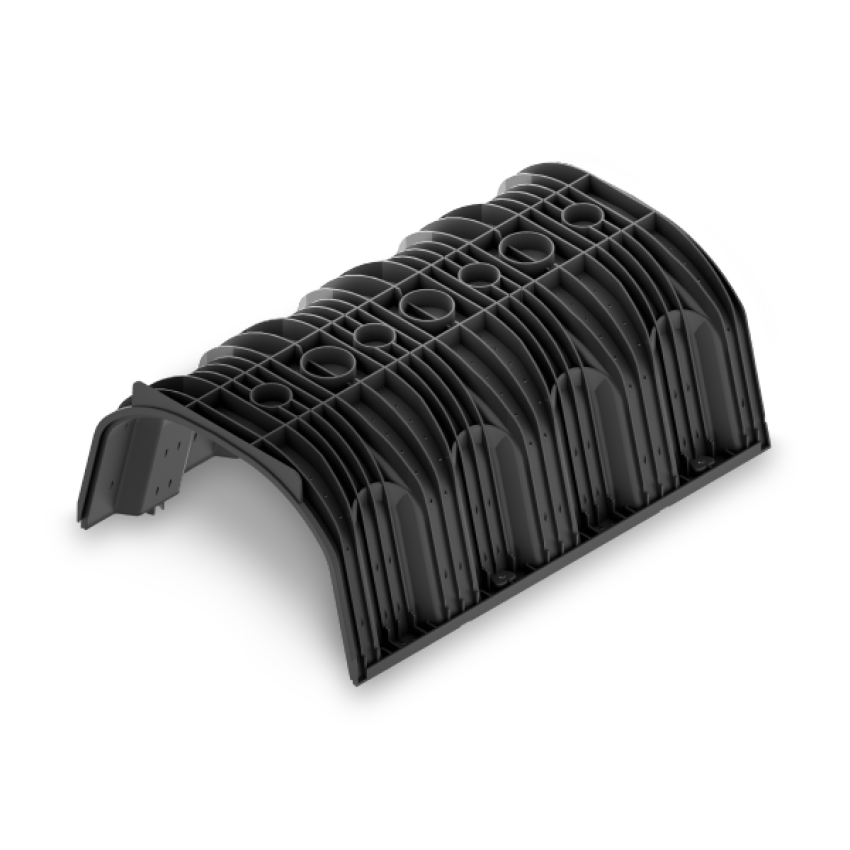

- DRAINFIX TWIN element 1:
with drainage holes for retention and infiltration
--> application for high and medium ground water level - DRAINFIX TWIN element 0:
without drainage holes
--> use under sealed surfaces or for installation without special gravel packing
= Fleksibilnost | Edinstvenost
QUICK INSTALLATION & EASY HANDLING ON SITE
- DRAINFIX TWIN elements made of PP recycled composite
--> low weight - design enables easy joining of the elements
--> modular system - expandable as needed
- flexible installation arrangement due to variable combination
= Prihranek časa | Prihranek stroškov

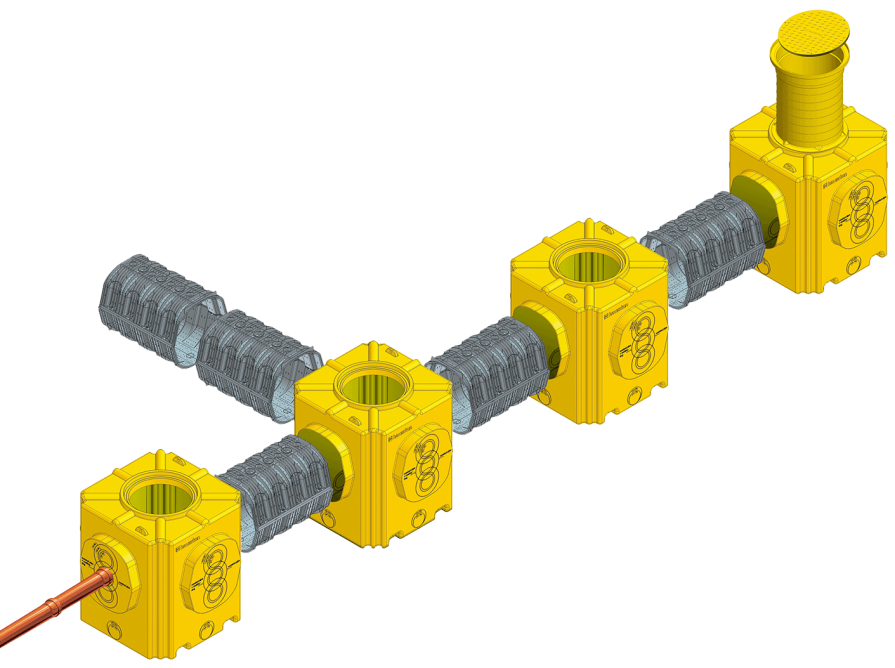

SISTEM PODROBNO
Jašek narejen iz PE
DRAINFIX®TWIN 1/1, izdelan iz PP, perforiran, za ponikanje in zadrževanje vode
Opcija nastavek višine za jašek
Pokrov za razr. obr. A15, narejen iz PE, za jaške iz umetne mase. Alternativa, LTŽ pokrov raz. obr. D400
Cevni nastavek za odtok in iztok različnih dimenzij
