DRAINFIX CLEAN filter substrate channel | Rainwater treatment

IDEAL FOR: Surface drainage and rainwater treatment for traffic areas up to Class F 900 for logistics centres, parking areas and industrial facilities
%s


YOUR BENEFITS WITH DRAINFIX CLEAN

HIGH RETENTION CAPACITY

= Varnost trajanja
PRIKAZ PODROBNOSTI

HIGH RETENTION CAPACITY

  • treatment efficiency secured even in heavy rain events
= Varnost trajanja

EXTREMELY LONG MAINTENANCE INTERVALS

= Prihranek stroškov | Varnost trajanja
PRIKAZ PODROBNOSTI

EXTREMELY LONG MAINTENANCE INTERVALS

  • first inspection after 10 years (depends on local conditions and calculation)
  • if maintenance is neccessary only filter cake has to be removed
= Prihranek stroškov | Varnost trajanja

HIGH STABILITY

= Varnost kvalitete
PRIKAZ PODROBNOSTI

HIGH STABILITY

  • withstands high traffic loads
  • resistanve against temperatur differences
  • stable and unbreakable material / channel system
= Varnost kvalitete


EXCELLENT TREATMENT EFFECT

= Varnost kvalitete | Varnost trajanja
PRIKAZ PODROBNOSTI

EXCELLENT TREATMENT EFFECT

  • approved by German Institute for Building Technology (DIBt)
  • efficiency of treatment:
    - Total suspended solids (TSS): 99,5 %
    - Total petroleum hydrocarbons (TPHs): 99,9 %
    - Zn: 99,8 %
    - Cu: 99,8 %
  • complies with legislative requirements
  • treatment efficiency secured even in heavy rain events
= Varnost kvalitete | Varnost trajanja

LOW WEIGHT ENSURES EASY HANDLING ON SITE

= Fleksibilnost | Prihranek stroškov
PRIKAZ PODROBNOSTI

LOW WEIGHT ENSURES EASY HANDLING ON SITE

  • much lighter than channels made of polymer / resin concrete
  • easy handling in stock and on site
  • cost-effective transportation
= Fleksibilnost | Prihranek stroškov

RENOWNED DEVELOPMENT PARTNERS

= Varnost kvalitete
PRIKAZ PODROBNOSTI

RENOWNED DEVELOPMENT PARTNERS

  • the development of the system was monitored and supported by approved institutions:
    Bioplan: The experts for ecologically meaningful and cost saving drainage projects
    KIT: Karlsruhe Institute of Technology
    AiF - supported project:The AiF supports research and technically certified in many countries
= Varnost kvalitete


MORE USABLE SURFACE

= Fleksibilnost | Prihranek stroškov
PRIKAZ PODROBNOSTI

MORE USABLE SURFACE

  • all in one system:
    - drainage
    - retention
    - Treatment
    - discharging
  • more effective usage of area compared to other treatment systems, e.g. green swales
  • no additional space requirement
= Fleksibilnost | Prihranek stroškov

FLEXIBLE SYSTEM

= Fleksibilnost | Prihranek stroškov
PRIKAZ PODROBNOSTI

FLEXIBLE SYSTEM

  • adjustable to various requirements and local conditions
  • discharge of treated water:
    - percolation into groundwater
    - open water bodies
    - surface water sewer network
  • tailor-made solutions
= Fleksibilnost | Prihranek stroškov

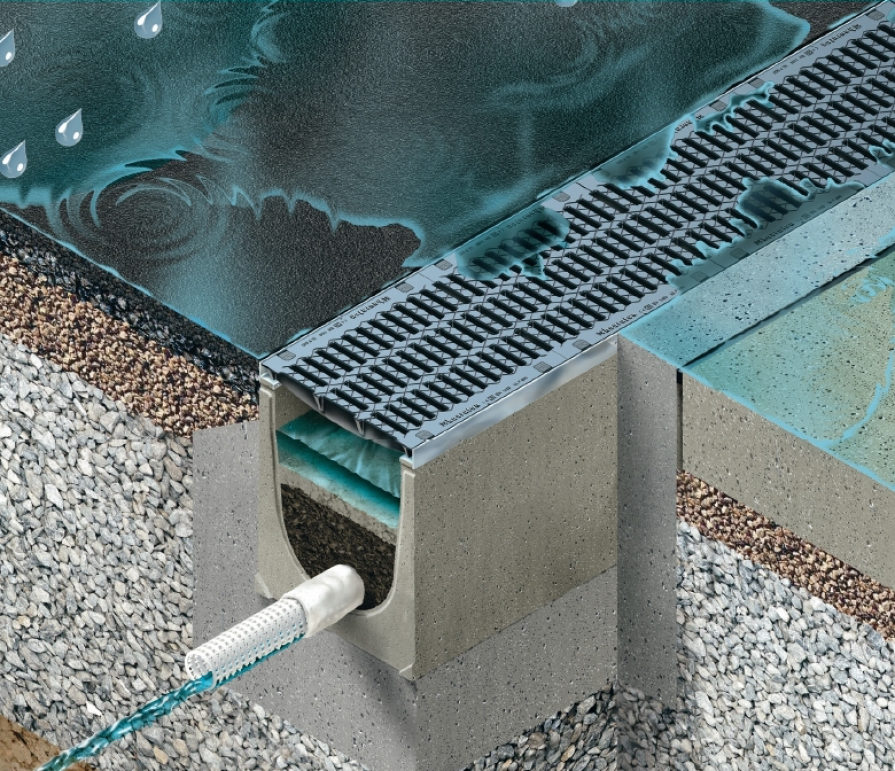

SISTEM PODROBNO

%s

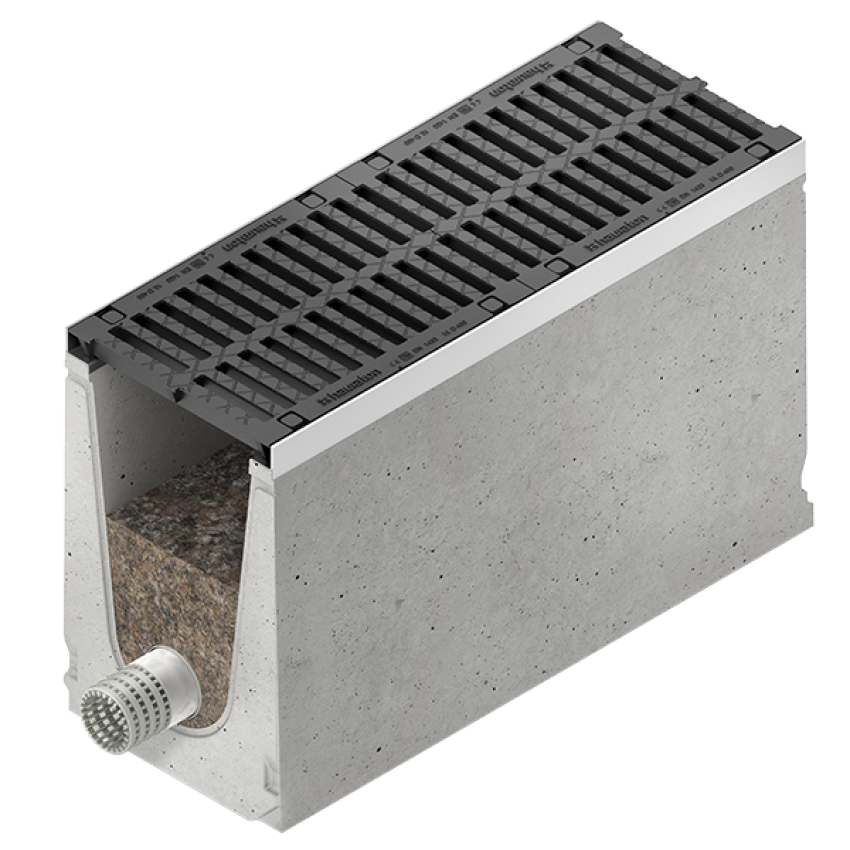

FASERFIX SUPER kanalete narejene iz betona armiranega z vlakni, v skladu z DIN V 19580 / EN 1433, CE-skladno, s tesnilno fugo in sidranim okvirjem iz pocinkanega ali nerjavečega okvirja
Litoželezna rešetka, raz. obr F 900, v skladu z EN 1433, različne izvedbe, na voljo tudi s KTL zaščito
Filtrski substrat z ogljikom, dobre filtrske sposobnosti, zadržuje fine delce (0.006 do 0.060 mm), učinek čiščenja odgovarja 30 cm nezasičenih tal
Drenažna cev iz visoko obstojnega umetnega materiala, različnih nominalnih velikosti, ovita z geotekstilom
dokazano očiščena voda, uporabna za infiltracijo v skladu z navodili DWA za podzemne infiltracijske jaške

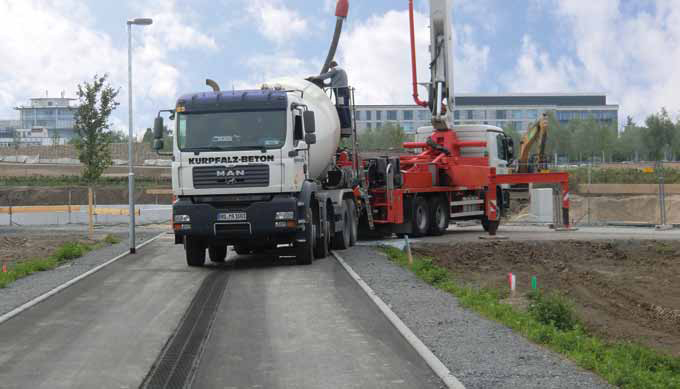

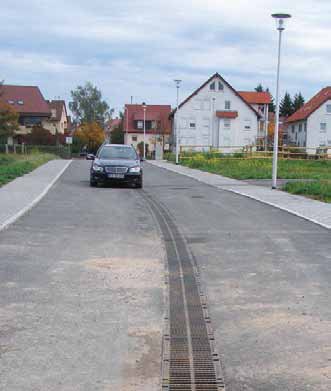

DRAINFIX CLEAN Applications
