SERVICE CHANNEL | Industry & exhibition

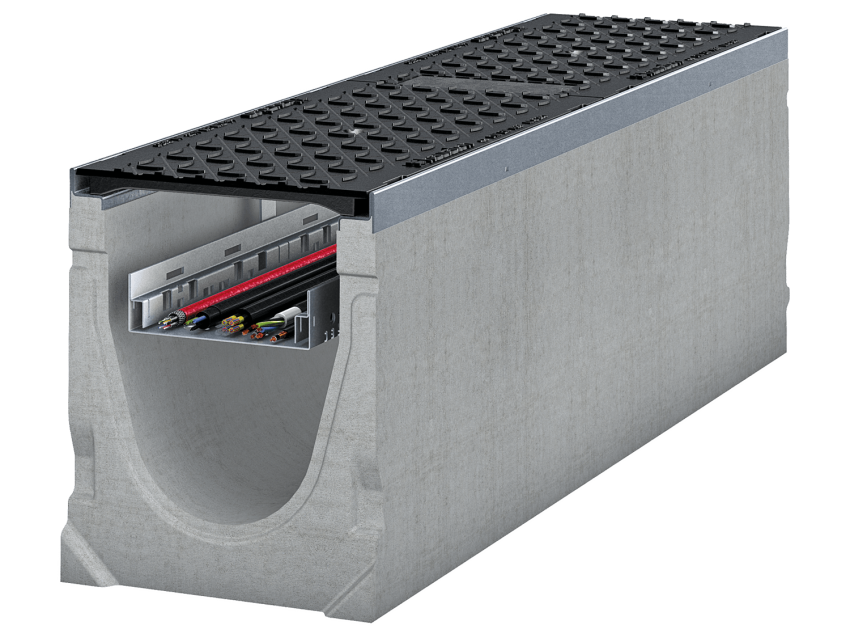

IDEAL FOR: applications for laying cables and lines in the ground which can be easily accessed at all times and the surfaces of which are driven on with heavy wheel loads.
%s



YOUR BENEFITS WITH SERVICE CHANNEL FASERFIX KS

HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK

= Prihranek stroškov | Varnost kvalitete
PRIKAZ PODROBNOSTI

HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK

  • 20 mm x 20 mm angle housing and inlaying grating
  • extremely stable connection between steel angle housing and concrete channel body
  • 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
  • extra protection against lateral movement
  • 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
  • replace and insert the grating without any special tool a screwdriver is enough
= Prihranek stroškov | Varnost kvalitete

HIGH STABILITY

= Varnost trajanja | Dolgotrajnost
PRIKAZ PODROBNOSTI

HIGH STABILITY

  • maximum lateral stability
  • extra thick wall thickness compared to many competitor products, for additional safety in extreme situations
  • installationforasphaltedsurfaces up to class E 600, without concrete stretcher
= Varnost trajanja | Dolgotrajnost

HIGH-GRADE MATERIAL

= Dolgotrajnost | Varnost kvalitete
PRIKAZ PODROBNOSTI

HIGH-GRADE MATERIAL

  • ”Made in Germany”
  • maximum stability due to fibre reinforced concrete (polypropylene fibres) with low weight
  • strong adhesion on foundation concrete (same coefficient)
  • installation without cover possible
  • fire resistance class A1 (non-flammable) according to DIN 4102
= Dolgotrajnost | Varnost kvalitete


UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS

= Fleksibilnost | Varnost trajanja
PRIKAZ PODROBNOSTI

UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS

  • high-QualityKTL-coating
  • anti-slip feature
  • extremely durable
  • easy opening and closing of the cover due to boltless locking system SIDE-LOCK
  • various covers: closed, with opening for cable outlet
= Fleksibilnost | Varnost trajanja

OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING

= Fleksibilnost
PRIKAZ PODROBNOSTI

OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING

  • KTL-coated
  • easy opening and closing of the cable inlet and outlet
= Fleksibilnost

LARGE, CLEAR CROSS-SECTION

= Fleksibilnost
PRIKAZ PODROBNOSTI

LARGE, CLEAR CROSS-SECTION

  • storage space for cables and wires
  • optional on two levels (see cable routing system accessories)
= Fleksibilnost


OPTIONAL CABLE-ROUTING SYSTEM

= Fleksibilnost
PRIKAZ PODROBNOSTI

OPTIONAL CABLE-ROUTING SYSTEM

  • for guiding cables and wires in an elevated position (see cable routing system accessories)
  • easier laying and accessibility of cables and lines
= Fleksibilnost

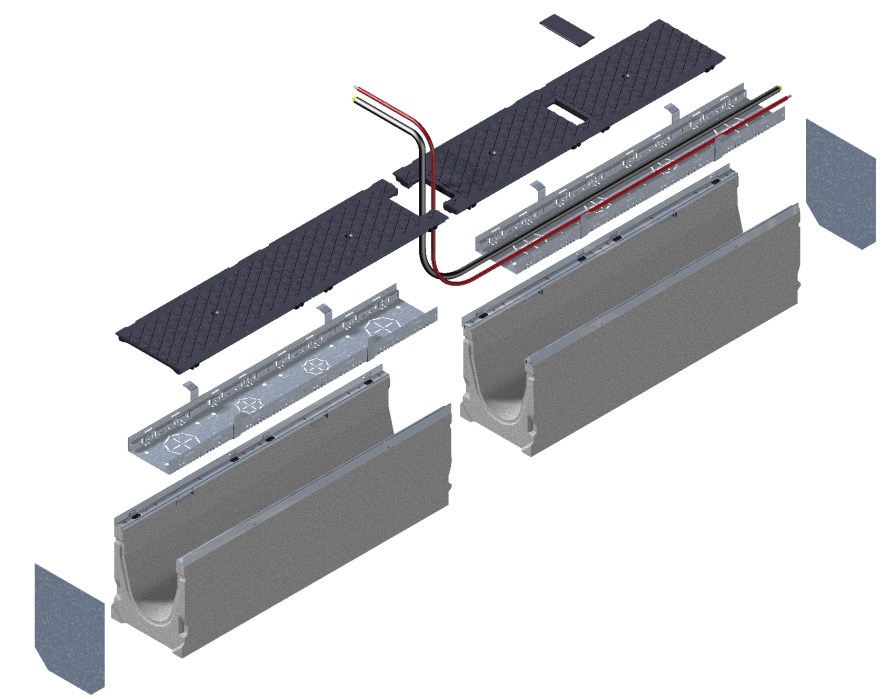

SISTEM PODROBNO

%s
Kanalete narejene iz betona armiranega z vlakni, v skladu z DIN V 19580 / EN 1433, CE-skladno, s tesnilno fugo in sidranim okvirjem iz pocinkanega jekla, z brezvijačnim sistemom SIDE-LOCK, s peresom in utorom za natančno vgradnjo
LTŽ pokrov, s proti zdrsno površino , KTL, zelo odporen
LTŽ pokrov z odprtino za kable, s protidrsno površino, s KTL zaščito, visoko odporen, lahko se kombinira z običajnim LTŽ pokrovom
Sistem kabelskega usmerjanja, pocinkan, za polaganje raličnih napeljav
Pokrov za odprtino za kable na LTŽ pokrovu, črn, KTL
Zaključna stena brez iztoka, pocinkana


SERVICE CHANNELS Applications
