RECYFIX HICAP F | high capacity drainage for highest loads

IDEAL FOR: drainage and retention for the highest load areas, such as airports, industrial estates and container terminals.
%s


YOUR BENEFITS WITH RECYFIX HICAP F

FAST AND EASY INSTALLATION

= Prihranek časa | Prihranek stroškov
PRIKAZ PODROBNOSTI

FAST AND EASY INSTALLATION

  • easy to handle and install without heavy lifting equipment
  • innovative Link&Lock grating connection for easy and quick straight channel alignment
  • integrated tongue and groove joint
  • PP channel body can be cut, drilled and worked easily on site
  • reduced pipe-work installations
= Prihranek časa | Prihranek stroškov

VARIOUS CONNECTION POSSIBILITIES

= Fleksibilnost | Varnost trajanja
PRIKAZ PODROBNOSTI

VARIOUS CONNECTION POSSIBILITIES

  • end cap with channel connection option
  • simple possibility for preparation of corner and T-connections in connection with the trash box
  • step-fall connector for connecting the next nominal width
  • various pre-formed pipe-connections for added flexibility
= Fleksibilnost | Varnost trajanja

INDIVIDUAL SOLUTIONS

= Fleksibilnost
PRIKAZ PODROBNOSTI

INDIVIDUAL SOLUTIONS

  • accommodates radius installation
  • wide range of uniform design gratings in KTL (‘cathodic dip‘ coated)
  • configurable as ‘constant-depth’ or ‘stepped-fall’
  • cable and pipe installations can be laid through throat voids between funnels
  • ductile iron top on the surface can be interrupted while channels continue underground
= Fleksibilnost


HIGH RESISTANCE

= Varnost kvalitete | Dolgotrajnost
PRIKAZ PODROBNOSTI

HIGH RESISTANCE

  • high-level resistance to fuels/oils, frost, salt and UV-rays
  • withstands high temperature differences
  • fit-for-purpose in climate temperatures ranging from minus - 50 °C to + 80 °C and more
  • gratings in spheroidal ductile iron (KTL ‘cathodic dip‘ coated); for high impact/corrosion resistance
= Varnost kvalitete | Dolgotrajnost

LARGE RETENTION VOLUME

= Varnost trajanja | Prihranek stroškov
PRIKAZ PODROBNOSTI

LARGE RETENTION VOLUME

  • drainage and retention in one component
  • high capacity and back-pressure capacity due to a variety of nominal widths
  • fewer chamber and pipe connections required
= Varnost trajanja | Prihranek stroškov

HIGH-GRADE MATERIAL

= Varnost kvalitete | Varnost trajanja
PRIKAZ PODROBNOSTI

HIGH-GRADE MATERIAL

  • top inlet made of high-quality ductile iron ---> much higher tensile and compressive strength than channels made of polymer/resin concrete
  • high-grade RECYFIX® channel components from very light and almost unbreakable material
  • 100 % recycled PP composite body (and 100 % recyclable) for full environmental standards compliance
  • smooth inner surface for superior flow characteristics
  • 0 % water absorption
= Varnost kvalitete | Varnost trajanja


HIGH STABILITY

= Varnost trajanja
PRIKAZ PODROBNOSTI

HIGH STABILITY

  • designed for superior resistance to dynamic forces and loads up to class F 900
  • torsion-free ribs and throat voids for additional structural integrity and rigidity
= Varnost trajanja

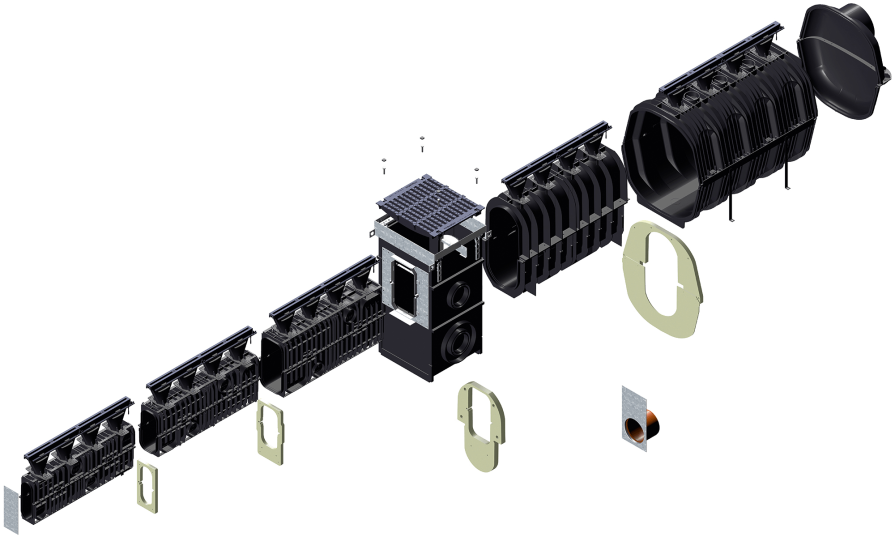

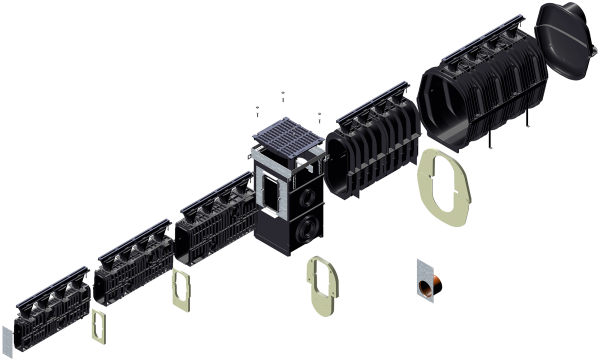

SISTEM PODROBNO

%s
RECYFIX®HICAP®F 1000/2000 kanaleta izdelana iz umetne mase, z vtočnikom in intergrirano nodularno litino
RECYFIX®HICAP®F 3000 kanaleta izdelana iz umetne mase, z vtočnikom in intergrirano nodularno litino
RECYFIX®HICAP®F 5000 kanaleta izdelana iz umetne mase, z vtočnikom in intergrirano nodularno litino
RECYFIX®HICAP®F 8000 kanaleta izdelana iz umetne mase, z vtočnikom in intergrirano nodularno litino
RECYFIX®HICAP®F 10000 kanaleta izdelana iz umetne mase, z vtočnikom in intergrirano nodularno litino
RECYFIX®HICAP® F peskolov s pocinkanim sidranim okvirjem in LTŽ rešetko s SIDE-LOCK sistemom za fleksibilno spajanje različnih nominalnih velikosti
slepa zaključna stena
S spojnim elementom se spoji naslednja nominalna velikost
S spojnim elementom se spoji naslednja nominalna velikost
S spojnim elementom se spoji naslednja nominalna velikost
Zaključna stena z iztokom
S spojnim elementom se spoji naslednja nominalna velikost
Zaključna stena 10000 z možnostjo priključka
